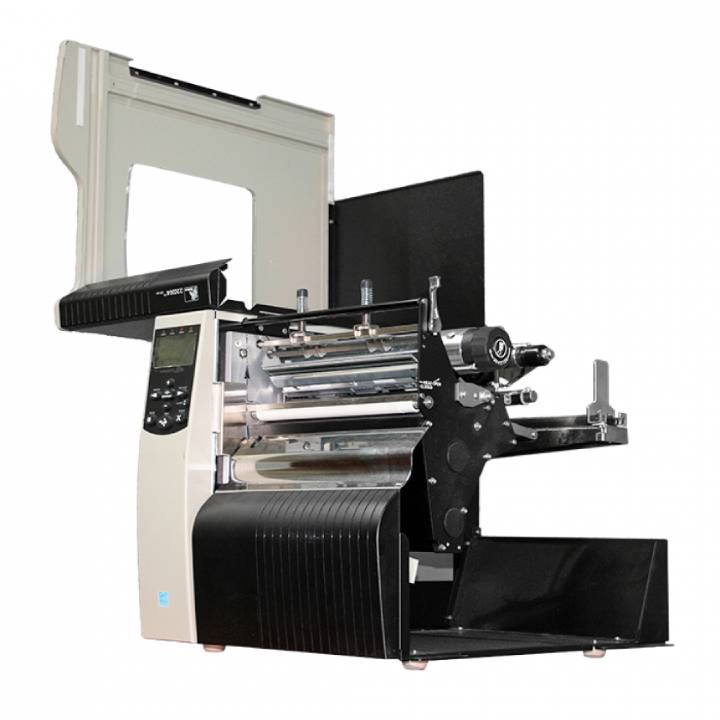

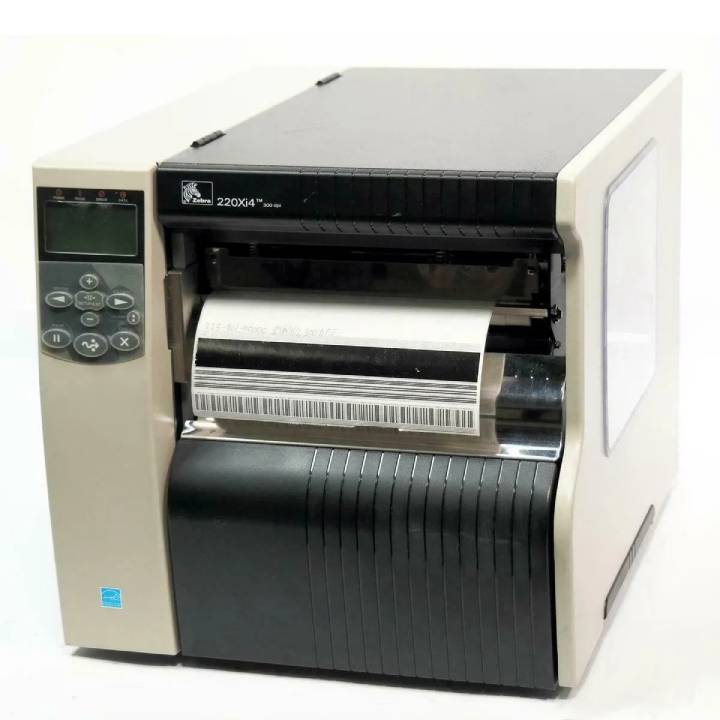

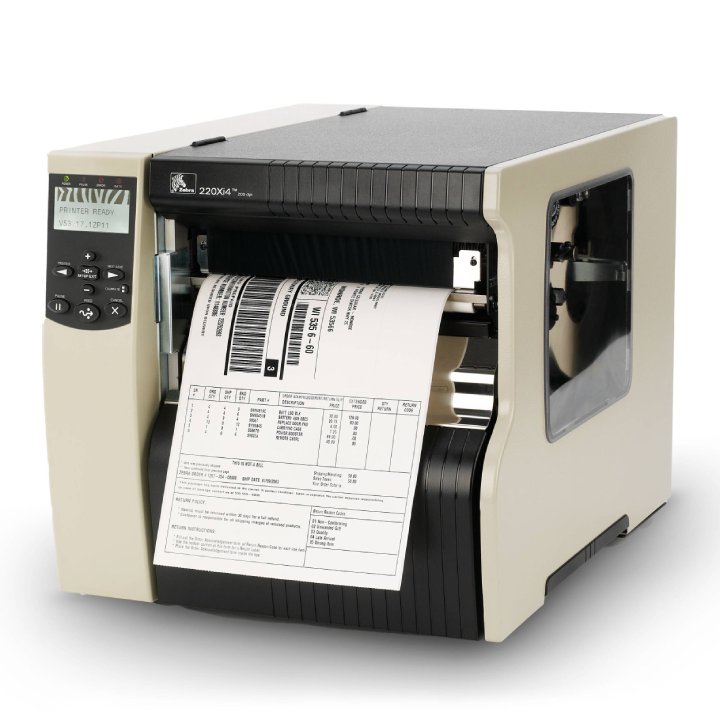

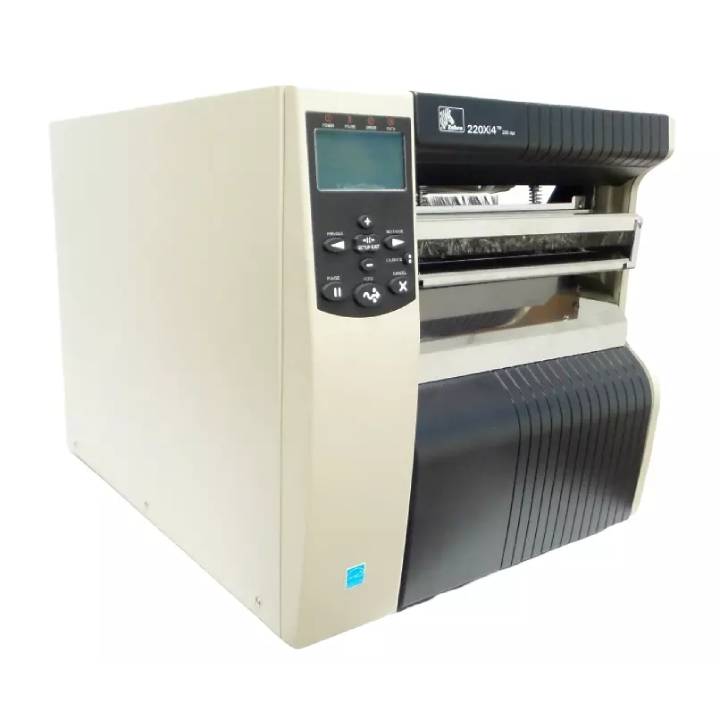

Zebra industrial printer 220Xi4
Built-to-Last
Boost productivity in the most demanding conditions with Zebra's most rugged line of Industrial label and tag printers. Count on high print speeds and outstanding quality.
Legendary rugged durability, print quality and longevity
Zebra’s built-to-last 220Xi4 printer is renowned for it's incredible durability, consistently outstanding print quality, fast print speed, long life and unparalleled reliability in demanding applications. The 220Xi4 is designed for printing of labels up to 8" wide for chemical drum or other wide label applications. The ZT610 or ZT620 Industrial printers are the preferred printers for high volume print applications with a print width of less than 6.6" (168 mm).
Built to Perform. Day In and Day Out. Year After Year.
Zebra’s 220Xi4 printer is loaded with features and options that makes it easy to set up, integrate and operate.
Easy to Integrate
The 220Xi4 printer build on this legacy to boost your operational productivity and give you enhanced early warning systems for reduced downtime. Other performance features include a large, easy-to-read front panel for simple setup with optional customizable menu and support for a wider assortment of languages. Integration is easier with a variety of network connectivity options, while ZebraLink™ Solutions provide remote printer management capabilities.
Strong Return on Your Investment
Zebra’s 220Xi4 printer give you reliable performance over the long run to minimize maintenance needs and total cost of ownership. With one printer model and Zebra’s wide range of label materials and sizes, you can address a variety of printing applications, reducing the need to purchase different printers for every specific labeling application. The wireless connectivity option frees you from paying for recabling with every physical reconfiguration of your operations.
Productivity That Won't Quit
Drive down operations downtime with the all-metal 220Xi4 printers’ rugged dependability and premium performance. For mission-critical and 24/7 operations, every minute down means money out the window.
? The long-proven Xi series platform is designed and built to work nonstop, all day, every day.
? Durable metal printhead mechanism delivers outstanding print quality over the long run, reducing or eliminating downtime for printhead replacement.
? Enclosed operating mechanisms block out debilitating dust and dirt.
Specifications
Standard Features
|
Printer Specifications
| Resolution | 203 dpi/8 dots per mm 300 dpi/12 dots per mm |
| Memory | 64 MB Flash; 16 MB RAM |
| Maximum Print Width | 8.5"/216 mm |
| Maximum Print Speed | 10"/254 mm per second (203 dpi) 6"/152.4 mm per second (300 dpi) |
| Media Sensors | Transmissive and reflective |
Media Characteristics
| Media Width | 4.25" (108 mm) to 8.8" (224 mm) |
| Maximum Media Roll Size | 8.0" (203 mm) outside diameter on a 3" (76 mm) inside diameter core |
| Thickness | 0.003"/0.076 mm to 0.012"/0.305 mm |
| Media Types | Continuous, die-cut gap, black mark, notch or hole |
| Minimum Non- Continuous Label Length | 0.25"/6 mm (Rewind mode) 0.5"/13 mm (Peel mode) 0.7"/18 mm (Tear-off mode) 1.5"/38 mm (Cutter mode) |
Ribbon Characteristics(Thermal-transfer option only)
| Outside Diameter | 3.2"/81.3 mm |
| Standard Length | 1476'/450 M 984'/300 M |
| Width | 4.25" (108 mm) to 8.6" (220 mm) |
| Core I.D. | 1.0"/25.4 mm |
Operating Characteristics
| Environmental | Operating Temperature: 40°F to 105°F/5°C to 40°C
Operating Humidity: 20% to 85% non-condensing |
| Electrical | 90-264VAC; 48-62Hz ENERGY STAR qualified (140Xi4, 170Xi4, 220Xi4) |
| Agency Approvals | IEC 60950-1, EN 55022 Class B, EN 55024, EN 61000-3-2, EN 61000-3-3 Product Markings: cTUVus, CE, FCC-B, ICES-003, VCCI, C-Tick, NOM, S-Mark(Arg), CCC, GOST-R, BSMI, KCC, STB, and UkrSEPRO |
Physical Characteristics
| Height | 15.5" / 393.7 mm |
| Width | 15.81" / 401.6 mm |
| Depth | 20.38" / 517.5 mm |
| Weight | 72 lbs. / 32.7 kg |
Software Tools
| ZebraLink Solutions Zebra Setup Utilities — A Windows application to quickly set up and configure your Zebra printer. ZebraDesigner™ — Simple Windows WYSIWYG label design application with basic features. ZebraDesigner Pro — Simple Windows WYSIWYG label design application offering more advanced features for more complex label designs. ZBI-Developer™ — Programming utility makes it dramatically easier for programmers to create and test complex ZBI 2.0™ programs and distribute them to the printer (standard with ZBI 2.0). ZebraNet™ Bridge Enterprise — Centrally manage Zebra printers from a single PC screen anywhere on your global network. ZebraNet Utilities v7.0 — Provides enhanced printing, conversion and administration capabilities; message management; and more. Zebra Enterprise Connector — Print labels directly from Oracle’s BI Publisher with the Enterprise Connector and Zebra printers. ZDesigner Windows Driver — Zebra’s powerful Microsoft certified Windows driver. |
| Web View Connect and control Zebra barcode printers using ZPL II via the printer’s web interface using common web browsers. |
| Alert Printers equipped with ZebraNet print servers will notify you via any email-enabled wired, or wireless device to minimize downtime. |
Firmware
| ZBI 2.0 — Optional powerful programming language that lets printers run stand-alone applications, connect to peripherals, and much more. ZPL? & ZPL II? — Zebra Programming Language provides sophisticated label formatting and printer control and is compatible with all Zebra printers. |
Barcode Symbologies
| Linear Barcodes: Code 11, Code 39, Code 93, Code 128 with subsets A/B/C and UCC Case C Codes, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2-or 5-digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar and Planet Code 2D Barcodes: Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, TLC 39, GS1 DataBar (RSS), Aztec |
Fonts and Graphics
| Unicode™-compliant Global Printing Bitmap fonts A through H and GS symbols are expandable up to 10 times, height and width independent Smooth scalable font ? (CG Triumvirate™ Bold Condensed*) is expandable dot-by-dot, height and width independent IBM? Code Page 850 International Characters Supports user-defined fonts and graphics — including custom logos 61 MB user-available non-volatile memory storage for downloadable objects 12 MB user-available SDRAM Bitmap fonts A through H and GS symbols are *Contains UFST? from Agfa Monotype Corporation |
Options and Accessories
| Clear media side bi-fold door–allows shorter media door opening radius Full-width rotary knife cutter and catch tray–operates under software control cutting labels individually or in strips Media rewind spindle–rewinds finished roll internally onto 3" (76 mm) core or enables label peel and liner rewind Applicator interface – provides status and control signals for applicators and remote control devices Media supply spindle for 3" (76mm) core or 40mm core Additional fonts |
Markets and Applications
Manufacturing
- Drum labeling
- Shipping and Receiving
- Work-in-process
- Put-away labeling
